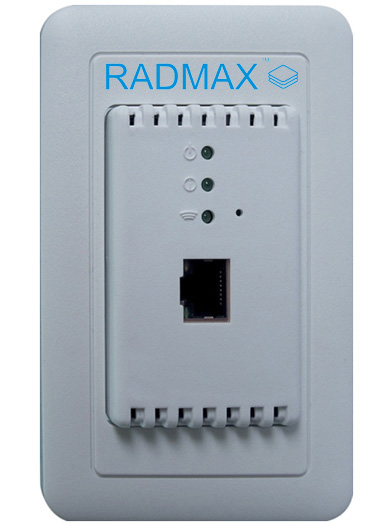

Rad 6080

Overview

Specification

Hardware
Model Number	RAD-6080
Standards	IEEE 802.11n Draft 2.0 , 802.11b/g
Ports	One 10/100/1000 RJ-45 ports
Power over Ethernet	802.3af
LED	Ethernet Port, Wireless
Antenna	Embedded antenna
Transmit power	Up to 200mW, typical 100mW
Security	64/128-bits WEP, IEEE 802.1x, WPA-PSK (TKIP/AES), WPA-EAP (TKIP/AES), WPA2-PSK (TKIP/AES), WPA2-EAP (TKIP/AES)
Management	Secured Web-based, Windows-based and UPnP Discovery, SNMP v1 & v2
Syslog	Local Web-based syslog, BSD remote syslog (Syslog Server)
Feature
Hardware	Hardware watchdog timer
Networking	DHCP client & server, Packet filtering
WDS	Up to 6 links, WDS link with WEP encryption
Firmware upgrade	HTTP or TFTP
Public hotspots support	Link integrity
	Wireless client isolation
	AP load balancing
	Association control
Physical
Dimensions	70mm x 36.5mm x 64mm (L x W x D / AP Body)
Unit Weight	150g
Power	Power over Ethernet (48V, 125mA)
Power	3.3V, 1A (Optional)
Certification	FCC, CE, IC-03
Operating Temp.	0 - 40°C (32 - 104°F)
Storage Temp.	-20 - 70°C (-4 - 158°F)
Operating Humidity	5% - 95%, Non-Condensing
Storage Humidity	10% - 85%, Non-Condensing
