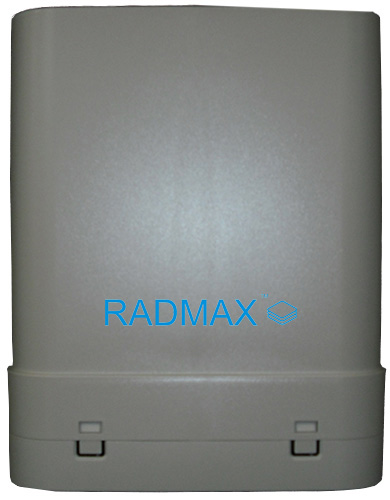

Rad 400 OD

Overview

Specification

Rad 400 OD is a high power broadband router supports AP/Client/WDS/AP+WDS feature and functional compliance of IEEE 802.11 b/g standard. It is a designed to provide good performance and enhance the advantages of robust system and cost effective..

ITEM	DESCRIPTION
Standard	IEEE 802.11 b/g
Operating Mode	AP/Client/ Router/ AP Router/ AP Bridge/ PtP & WDS modes
Security Features	64/128 bit WEP, WPA, Port Filtering, IP Filtering, Port Forwarding, MACFiltering & DMZ Hosting
Maximum Output Power	26 dBm
Modulation Method	802.11b: CCK, 802.11g:OFDM
Sensitivity	802.11b:(-80dBm)
Firmware Upgrade	Web
Broadcast SSID	Through Web
Frequency Band	2.412-2.483.5 GHz ISM Band
Operating Range	Depend upon Surroundings
HARDWARE
Memory SDRAM	16 MB
Flash Memory	2 MB
Ethernet Port	IEEE 802.3 100 Base + (RJ45)
RF Connector	Reverse SMA detachable antenna
Antenna	14 dBi Integrated (Optional)
POWER REQUIREMENT	12V DC @ 1.25 Amp Max
WORKING ENVIRONMENT
Temperature	-40C~70C
Relative Humidity	95% (non-condensing)
DIMENSION
WLH (mm)	178mm* 108mm* 41mm
CERTIFICATION	CE/FCC Part 15
